Abrasion Resistant Polyurethane Dewatering Screen Mesh for Mining Ore Separation Systems

Μεγάλες Εικόνας : Abrasion Resistant Polyurethane Dewatering Screen Mesh for Mining Ore Separation Systems

Λεπτομέρειες:

Τόπος καταγωγής:	Κίνα
Μάρκα:	Huatao
Πιστοποίηση:	ISO9001, CE
Αριθμό μοντέλου:	Πίνακας οθόνης PU
Εγγραφο:	2026-Huatao Catalogue of Mi...on.pdf

Πληρωμής & Αποστολής Όροι:

Ποσότητα παραγγελίας min:	5 τεμάχια
Τιμή:	USD 35 - 45/Piece
Συσκευασία λεπτομέρειες:	Τυπική συσκευασία εξαγωγής
Χρόνος παράδοσης:	5-7 μέρες
Όροι πληρωμής:	T/T, Western Union, L/C, D/A, D/P
Δυνατότητα προσφοράς:	10000 Τεμάχια το μήνα

Επικοινωνία

Λεπτομερής Περιγραφή Προϊόντος

Υλικό:	Υλικό και ενσωματωμένο πλαίσιο χάλυβα πολυουρεθάνιου	Μέγεθος ανοίγματος:	Ελάχ.0,053 χλστ
τύπος:	Ws85, σειρά Ls	Πάχος:	30mm, 40mm, 50mm
Προσδιορισμός:	OEM	Παραγωγική ικανότητα:	10000 τμχ/μήνα
Επισημαίνω:	abrasion resistant polyurethane screen mesh , mining ore separation screen panel , polyurethane dewatering screen for mining

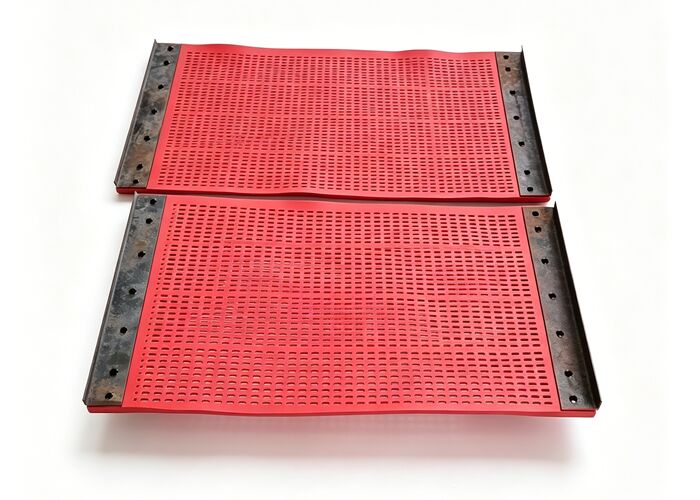

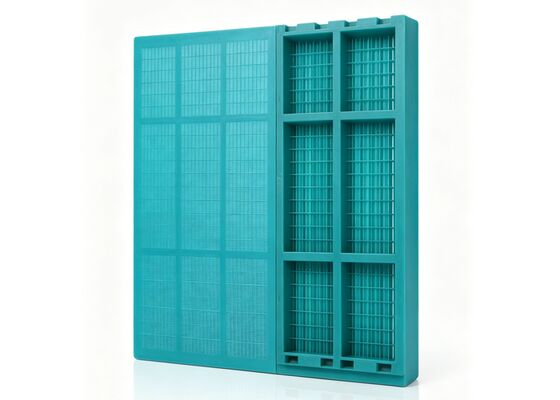

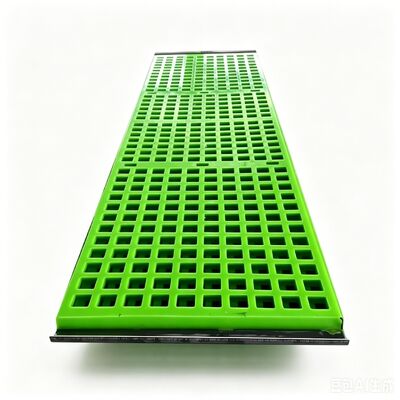

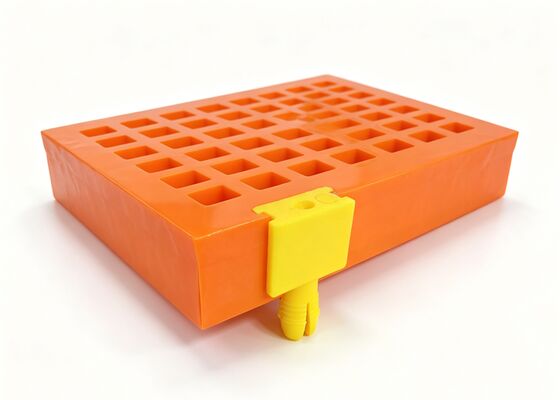

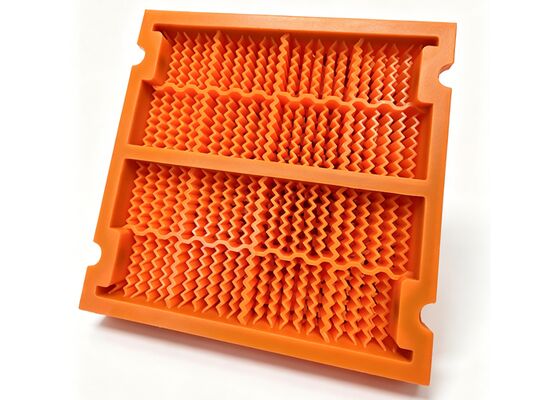

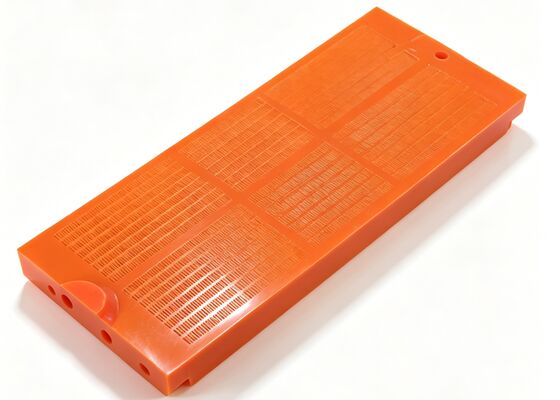

Abrasion Resistant Polyurethane Dewatering Screen Mesh for Mining Ore Separation Systems

Product Overview

The Abrasion Resistant Polyurethane Dewatering Screen Mesh for Mining Ore Separation Systems represents a significant advancement in mineral processing technology, specifically engineered for the most demanding mining environments. Manufactured from a specially formulated polyurethane elastomer and integrated with a high tensile embedded steel frame, this screen panel provides the perfect balance between flexibility and structural rigidity. In the industrial screening and separation sector, equipment is constantly subjected to high levels of friction and impact. Our polyurethane surfaces are designed to excel in these conditions, offering a wear resistance that typically outperforms traditional metal meshes by 3 to 8 times in terms of actual service life. This longevity is a critical factor for mining operations looking to minimize downtime and replacement costs.

Technically, the panel is built to handle high-volume processing. It is available in various thickness choices—30mm, 45mm, and 50mm—to suit specific operational loads and material weights. The precision-engineered slot openings, which range from 0.1mm to 2.5mm in width and 4mm to 16mm in length, ensure highly accurate dewatering and classification of sand, gravel, and mineral ores. The internal high tensile strength steel frame acts as a skeletal support, preventing the panel from sagging or deforming under the heavy weight of ore slurry while maintaining a consistent tension. These panels are designed for versatility, fitting standard equipment with widths such as 305mm, 500mm, and 515mm, and lengths ranging from 305mm up to 1220mm. By choosing this polyurethane dewatering solution, plant operators can achieve a higher quality of final product separation while benefiting from a screening media that withstands the corrosive and abrasive nature of mining tailings and coal preparation processes.

Please find the applicaiton as below:

* Mining: Ideal for grading iron ore, copper, limestone, and granite.
* Coal Processing: Efficient dewatering and desliming in coal preparation plants.
* Aggregates & Quarries: High-precision screening of sand, gravel, and crushed stone.
* Recycling & Waste Management: Separation of construction debris and industrial waste.

Technical Specifications

Item	Vibrating Screens PU Screen Panel For Mineral Processing
Dimension (L*W)	300mmx 300mm 305mmx 305mm 300mmx600mm 300mmx800mm 300mmx 1000mm 305mmx610mm others can be designed
Color	Yellow;Red;Orange;Green as regular
Thickness	5mm;30mm;40mm;50mm as regular
Warranty	12 Months
Applicable Industries	Energy & Mining
Material	Polyurethane with steel frame/MDI/TDI
Screen Size	5mm;30mm;40mm;50mm as regular
Cell Type	Slot,Square,Round etc.
Connection Type	WS 85; Trellex LS; P-yramid; Rail; etc.

Connection Type

Key Features

Polyurethane materials for wear resistance
Self-cleaning apertures reducing pegging and blinding
Wide range apertures suit most applications
Various panel sizes to suit all vibrating screens
Different connection type for easy installation and replacement
High screening performance
Low noise operation
Long service life and durable construction

Our team

Huatao Group is a leading innovative mineral equipment solutions provider, dedicated to improving operational efficiency and productivity in the mining and mineral processing industries. We are always committed to providing high quality and customer satisfaction, and are committed to becoming a trusted partner for companies.

HUATAO GROUP boasts a specialized team dedicated to developing mineral equipments and parts. Our primary business encompasses vibrating screens, polyurethane screen, rubber screen panels, mineral crushers, beneficiation machinery and other mineral equipment parts. Furthermore, we specialize in custom engineering, precision manufacturing, quality assurance, after-sales support and continuous innovation. Our products are renowned for their durability, efficiency, and reliability. We also offer equipment installations, operational training, and a wide range of spare parts to ensure our clients' operations run smoothly. With advanced technology and a focus on sustainability, HUATAO GROUP stands as a leading player in the mineral processing industry. If you are looking for polyurethane screen panels manufacturers, please contact us for more information!

FAQ

Q: What's the lead time for orders?
A: Standard models ship in 15–30 days; customized units require 30–45 days.

Q: Do you provide after-sales service overseas?
A: Yes, we have partnered service centers in key regions. and can fly to your site for after-sales.

Q: Can I request a customized size and design?
A: Absolutely! We offer customized.

Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).

Q: How do I place an order?
A: Contact us via email/phone/WhatApp for a quote, then confirm with a PO.
