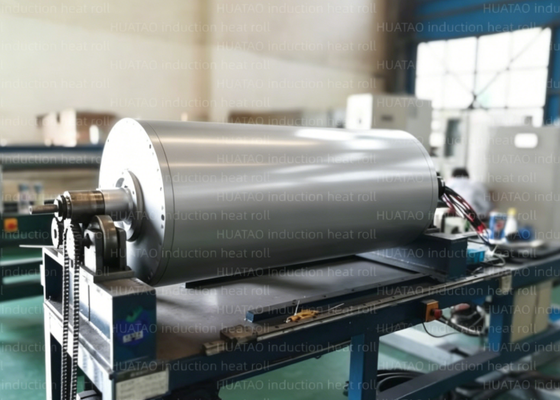

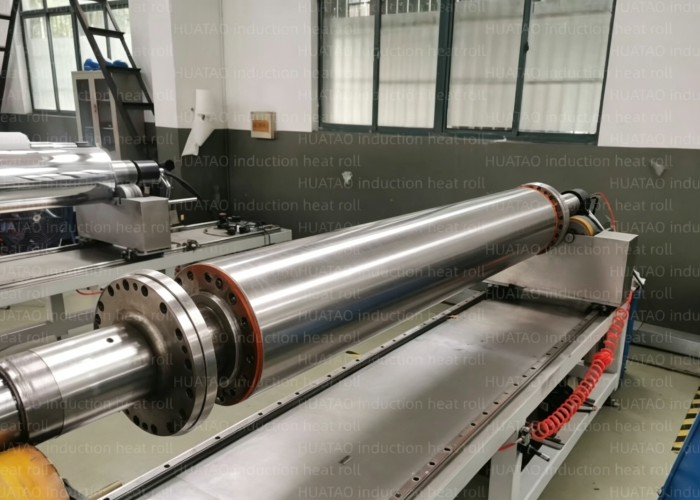

Roller Surface Temperature Difference Within 1 Degree Induction Heating Roller Hard Chromium Plating
Product Features
Our electromagnetic heating roller adopts cutting-edge electromagnetic induction heating, delivering outstanding temperature uniformity across the entire roller surface. The temperature deviation is controlled within ±1°C, making it adaptable to low, medium and high temperature working conditions.
Equipped with high-precision sensors, the roller achieves a temperature control accuracy of 0.1°C. Combined with ceramic insulation structure and water-cooled coil design, it can operate stably at a maximum temperature of 600°C.
Different from traditional oil heating solutions, pure electromagnetic heating avoids potential hazards such as pressure distortion, leakage and explosion, greatly improving operational safety. Since no heat transfer oil or steam is used, there will be no leakage, waste or harmful emissions, which is eco-friendly.
In terms of energy consumption, our product outperforms conventional heating equipment significantly: it heats up twice faster and cuts energy consumption by 50% to 70%.
Technical Specifications
| Material |
High-quality 45# steel, alloy steel |
| Roller Surface Temperature Difference |
≦±1℃ |
| Heating Method |
Electromagnetic induction heating |
| Surface Treatment |
Hard chromium plating, Teflok, spray ceramic or tungsten carbide |
| Processing Accuracy |
≤0.005mm |
| Straightness Runout |
≤0.01mm |
Application Fields
Printing, packaging, textiles, non-woven fabrics, thermal transfer printing, laser anti-counterfeiting, electronics, specialty paper, paper drying, pre-coated film lamination, laminated iron/aluminum production, optical films, stretch films, PTFE films, solar panel lamination, lithium battery components, PTFE coated filters, copper clad laminates, polyimide synthesis, chemical fibers, carbon fibers, sheet calendering, rubber/plastic/metal plate processing, high-temperature material composites.
About Huatao Group
Located in Shijiazhuang, Hebei, China, we specialize in manufacturing rollers for BOPET, BOPP, CPP lines, slitters, metalizers, and laminating machines. We welcome partnerships to create a prosperous future.
