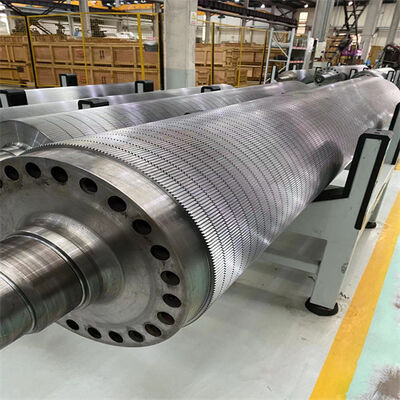

Flute Tungsten Carbide Coating Corrugated Roller High Efficient High Precision Grinding
Flute Corrugated Roller Introduction:
Tungsten carbide Corrugating Roller is uses the most advanced technology in corrugating production line, with highly efficient. How it highly prolonging corrugating roll's lifespan, It combines high precision grinding and carbide-tungsten coating together.
Flute Corrugated Roller Advantages:
- The tungsten carbide corrugating roll is made from 48CrMo alloy steel forgings.
- Undergoing medium frequency quenching, the roll achieves a hardness exceeding HRC60, with a depth of 7mm.
- The roll features an abrasion-resistant tungsten carbide coating, applied using the Praxair JP8000 HVOF system, with a thickness of 50-60 micrometers.
- Compared to chrome-plated corrugating rolls, the tungsten carbide version lasts more than three times longer while costing less than twice as much.
Flute Corrugated Roller Data Sheet:
| Product Name |
Flute Corrugating Rolls |
| Material |
Special 48CrMo alloy steel fine forgings |
| Hardness |
HRC58 |
| Coating Thickness |
0.06 and 0.07mm Tungsten Coating Thickness |
| Surface Plating |
Micro hardness HV900-1250 |
| Combination Hardness |
>75MPa |
| Visible Optical Porosity |
<1% |
| Quenching Layer Depth |
5-7mm |
