45# Steel CFRP Carbon Fiber Roller EPDM Rubber Coated for BOPPP BOPET Production Line
BOPP BOPET Production Line CFRP Carbon Fiber Contact Roller EPDM Rubber Coated
CFRP Contact Roller Basis Information
Continuously increasing machine speeds and material Jweb widths are requirements which can hardly be met using conventional rollers made of steel and aluminum. The modern design material CFRP is therefore state-of-the-art in our company for rollers which must be able to meet even particularly high-end requirements. For this material, the rigidity-weight-ratio is many times higher than that of aluminum or steel. The critical speed of a rotating roller can be increased, and its deflection as well as its mass moment of inertia can be reduced.
| Product name |
CFRP contact roller
|
enough | Shell material |
Carbon fiber (CFRP) |
| Surface
| EMDP, NBR, Hypalon rubber |
译| Maximum Face Length |
subruclasstd>13000mm
iqueltr>
<宝宝td>Maximum Speed
| 300.run/min |
CFRP Contact Roller made of CFPR are available in the same technical designs as our proven metal rollers, and additionally provide the advantages of the modern CFRP material. CFRP Contact Roller can be delivered with diameters up to 1200mm and depending on the application, roller lengths of up to 13,000 mm are available.
vengeful
CFRP Contact Roller Features
CFRP Contact Roller For BOPP line is a specialized roller used in winding processes. It is made from carbon fiber-reinforced polymer (CFRP) and offers several advantages over traditional steel Rollers.
- Improved Stability: Carbon Fiber Contact Roller For Winding have low inertial forces, which allows them to maintain stability even at higher speeds compared to steel or aluminum rollers
- Higher Speeds: Due to their low inertial forces, carbon fiber rollers can
- Red搞搞iavess Stresses: Carbon Fiber Contact Roller For Winding reduce stresses on放Motires and Bearings, leading to increased life and efficiency.
- Light weight: Carbon Fiber Contact Roller For Winding are significantly lighter than steel rollers, reducing handling and safety issues during changeovers.
- Energy Efficiency: The lightweight nature of carbon fiber rollers reduces energy consumption.
- Faster Acceleration: Carbon Fiber Contact Roller For Winding can speed up significantly faster than steel rollers.
< moniesdiv class="pd-subheading">CFRP Contact Roller Parameters

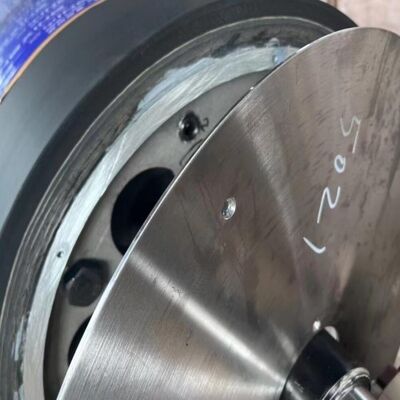

Single-shell construction with CFRP-tube
Shrinked and Welded disks and journals from S355 joined by adhesive in tube

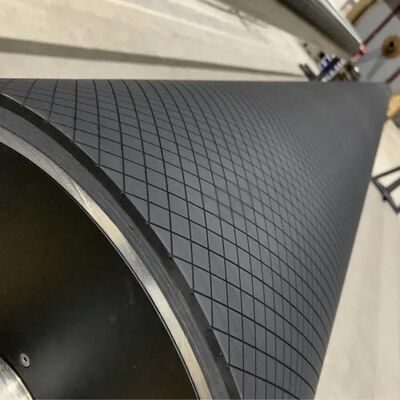

Surface: Black EPDM coated, thickness 14-16mm, Roughness: Ra0.4μm
Out of roundness ≤0.05mm
Dynamic balancing G2. Jet up to line max. speed
